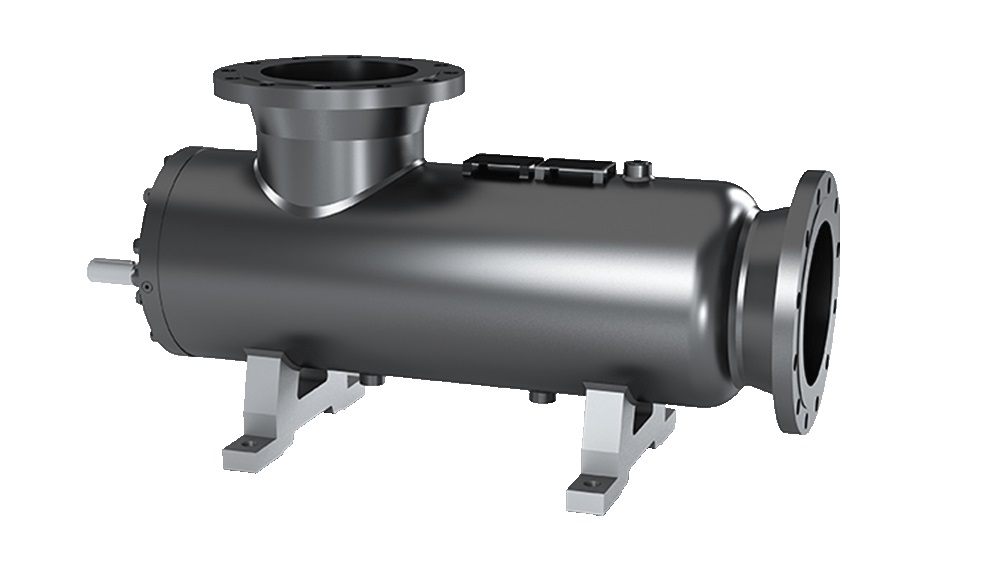

PCXA series
This series is developed according to API 676 standard and also special version is available for various fuel and diesel oil applications.
Product Reviews
Series Features:
- Capacity Range: Up to 5400LPM
- Viscosity Range: From 5 to 1500 cSt
- Temperature Range: From 0 to 120 °C
- Pressure Range: Up to 30 bar
Operational Features:
- The three-screw pump consist one rotor and two idlers, in a precisely bored pump casing insert, which ensures high pumping efficiency and high suction power.
- As the double-start screws meshes, a continuous axially moving voids/pockets generate, which traps the liquid inside it, and hence transfers the fluid, where it required.
- These pumps permits an even axial flow without pulsation and silent pumping operation even at a high speed.
- Axial loads on the rotor are often compensated by an adequate design of the bearing and all the radial forces are self-compensated.
- Further, size of a rotor kept small in the design, which enables these pumps to run at a higher speed with direct coupling to the prime mover.
Installation Features:
- Installation: Outdoor or Indoor
- Environment -Industrial, Marine
- Bearing:Internal
- Sealing Option: Mechanical Seal or double
- Mounting:Horizontally flange or vertically flange or horizontally foot
- Direction of rotation: CW(standard), CCW(on request)
- Ports location: Axial inlet and radial outlet for standard direction of rotation
- Driving unit: Pump can be connected with the prime movers by means of flexible coupling or gear box or pulley drive
- The care must be taken that pumps are do not run dry.
Product Advantages:
- Very low noise level.
- Very low pulsation into the pumped medium.
- High self-priming capability.
- Flexible installation (horizontal, or vertical)
- Ball bearing – to provide maximum operational reliability, even in presence of mechanical solicitations.
- Built-in relief valve (optional)
- Steel pump body.
- Versions with axial or radial suction.
- Executions for high pressure in suction circuit.
- According API676 III ed.
- Available with seal according API682 or BSPFN design.
- Available custom versions for fuels and diesel oil.
Industry:
- Power Hydraulics
- Power Generation
- General industries
- Machine tools
- Windmill
- Oil and Gas
- Compressor Lubrication
- Presses
- Marine
- Filtration
- Chemical and Petro-chemical industries
- Offshore Engineering
Industry Sector:
- Lubrication systems and as an auxiliary cooling system
- Lube and Mineral Oil
- Hydraulic Oil
- Diathermic Oil
- Organic (DFD-U) & Phosphate (HFDR) Ester
- Hydrofluorocarbide Water-Glycol
- Light & Heavy Fuel Oil
- Asphalt & Bitumen
- HFC fluids
- Lubrication systems and as an auxiliary cooling systems
Product Application:
- Very low noise level
- Very low pulsation into the pumped medium
- High self-priming capability
- Flexible installation (horizontal, or vertical)
- Ball bearing – to provide maximum operational reliability, even in presence of mechanical solicitations
- Built-in relief valve (optional)
- Steel pump body.
- Versions with axial or radial suction.
- Executions for high pressure in suction circuit.
- According API676 III ed
- Available with seal according API682 or BSPFN design.
- Available custom versions for fuels and diesel oil.
Material of Construction Table:
- Casing:Carbon steel, low temperature carbon steel.
- Rotor:Hardened Carbon Steel.
- Idler:Hardened Carbon Steel
- O-ring: Viton
...
...
