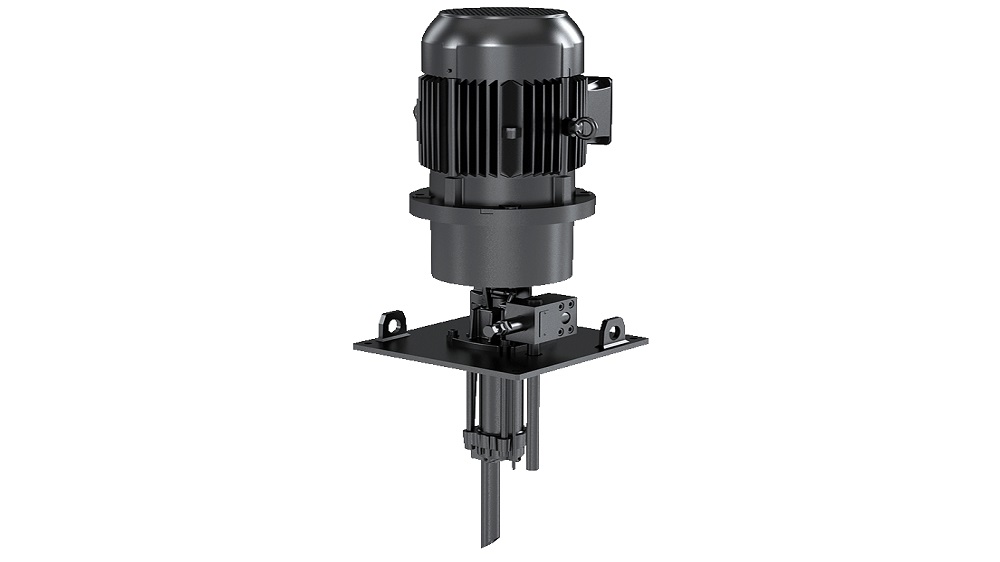

PWOF series

Download Catalogue

This series is mostly suitable for pumping fluids that do not include lubricating properties among its main characteristics.

Product Reviews

The three-screw pump consist one rotor and two idlers, in a precisely bored pump casing insert, which ensures high pumping efficiency and high suction power.
As the double-start screws meshes, a continuous axially moving voids/pockets generate, which traps the liquid inside it, and hence transfers the fluid, where it required.
These pumps permits an even axial flow without pulsation and silent pumping operation even at a high speed.
Axial loads on the rotor are often compensated by an adequate design of the bearing and all the radial forces are self-compensated.
Further, size of a rotor kept small in the design, which enables these pumps to run at a higher speed with direct coupling to the prime mover.

Installation: Outdoor or Indoor
Environment - Industrial, Marine
Bearing: External
Sealing Option:Mechanical Seal, Radial Seal
Mounting: Horizontal, or vertical (also vertical semi-submerged)
Direction of rotation: CW(standard), CCW(on request)
Ports location:Axial inlet and radial outlet for standard direction of rotation
Relief valves: Built-in (optional)
Driving unit: Pump can be connected with the prime movers by means of flexible coupling or gear box or pulley drive
The care must be taken that pumps are do not run dry.

Very low noise level
Very low pulsation into the pumped medium
High self-priming capability
Robust cast iron body
Flexible installation (horizontal, or vertical)
Execution for large amount of air entrapped (up to 5%) in the pumped medium
Ball bearing – to provide maximum operational reliability, even in presence of mechanical solicitations
Built-on safety valve

Centralized systems for cooling lubrication in the machine tools sector
Deep hole drilling machines, CNC machines, Grinding and Milling machines
Filtration systems for emulsion/coolant with high pressure pump
Chip conveyors and Central units for heat exchangers and energy recovery
All applications in driving and high-pressure lubrications where the use of the cast iron for the construction of the pump is a must
Cooling lubricants (water-based emulsions, 5% min. content), cutting oils, lube oils, mineral and synthetic types, vegetable oils
